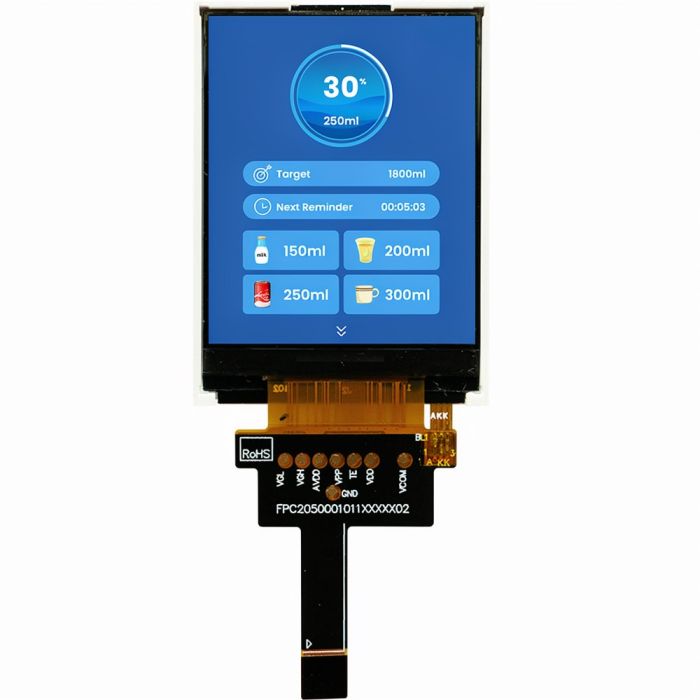

VR18HSLAADNN0 is a portrait mode 128x160 TFT LCD display module with a diagonal size of 1.77 inches and an active area of 28.03 x 35.04 mm. This 128x160 TFT display offers 900 cd/m² brightness (typical value), a 500:1 contrast ratio (typical value), 6 o'clock view direction, and 12 o'clock gray scale inversion direction.
The module is built with an ST7735S driver IC and supports SPI interfaces. Its power supply voltage ranges from 2.5V to 3.7V, with a typical value of 2.75V. The operating temperature is -20℃ to +70℃, and the storage temperature is -30℃ to +80℃. The WF18HSLAADNN0 is suitable for a variety of applications, including portable devices, household appliances, toys, and medical devices.
